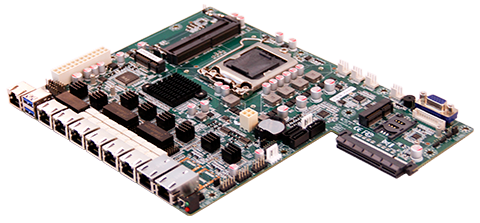

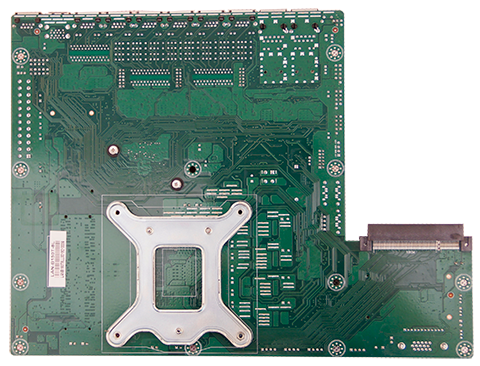

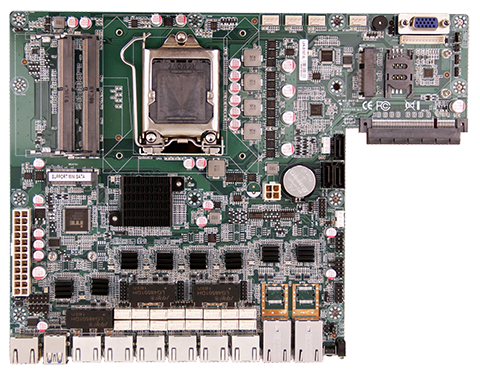

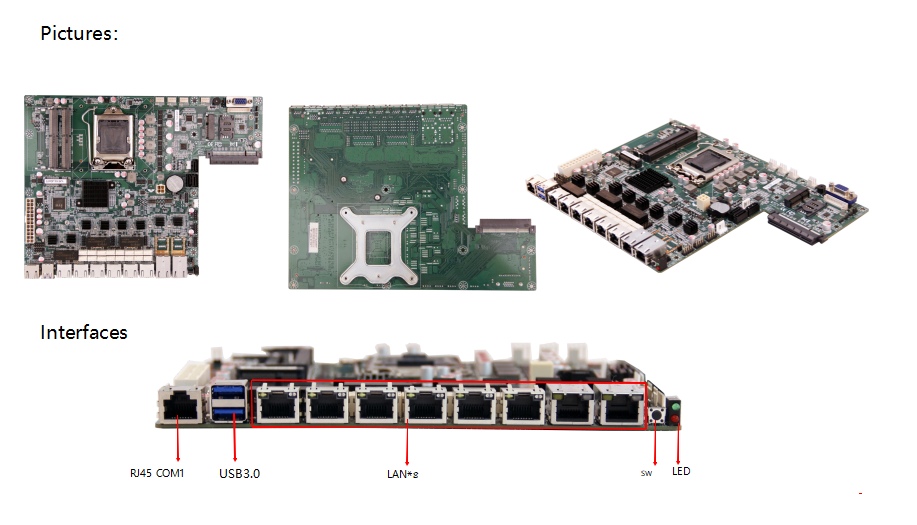

LAN-B150T-8L
Detailed
Support Intel® LGA 1151 6th&7th Processor
Dual Channel SO-DIMM DDR4 2133/2400MHz Max32GB
Built in 1*VGA pin，Support VGA Display
Support 8*I211，Support Bypass
Support 2*USB3.0 4*USB2.0
Support 1*COM pin +1*RJ45_COM
Support 1*Mini-PCIe (For WIFI Card) 、1*SIM
Support 3*SATA3.0 、1*mSATA
Support 1*PCIEX8 Expansion Slot
ATX Power Supply
Specification parameters
CPU Intel®LGA1151( Skylake&Kabylake) Rear I/O 8*LAN
Chipset Intel® 100 Series Chipsets B150 2*USB3.0
GPU Intel® HD Graphics 1*RJ45_COM
Display Built in 1*VGA pin 1*POWER＆HDD LED
COM 1*COM  1*RJ45_COM 1*SW
USB 2*USB3.0  ， 4*USB2.0 Internal I/O 1*4PIN ATX PIN
RAM 2*SO-DIMM  DDR4  2133/2400MHz  32GB 1*24PIN ATX PIN
Expansion 1*PCIEX8 1*COM PIN
Network 8*I211Gigabit LAN 1*GPIO PIN
storage 3*SATA3.0  ,  1*MINI-SATA 3*LAN_LED PIN
WIFI 1*Mini PCIe (For WIFI/4G) ,  1*SIM 1*F_PANEL PIN
I/O Chip ITE8784E-I 2*F_USBPIN(Support 4*USB2.0)
BIOS AMI  BIOS 1*JBP_LED PIN
Power ATXPower 3*SATA PIN
Cooling Fanless 2*SATA_PWR PIN
Operating Environment Operating：0~60℃; Storage: -20~75℃; 0%~95%
Relative Humidity,Non-condensing		 1*VGA插針
1*CPU FAN插針
Size 280X210mm 3*SYS FAN插針
